Factors associated with deep infiltrating endometriosis, adenomyosis and ovarian endometrioma

ABSTRACT

Introduction: To compare epidemiological features and clinical presentations of deep infiltrating endometriosis with endometrioma and adenomyosis, as well as to identify risk factors for the respective histologically confirmed conditions.

Method:Patients undergoing index surgery at the National University Hospital, Singapore for endometriosis or adenomyosis over a 7-year period—from 2015 to 2021—were identified from hospital databases using the Table of Surgical Procedures coding. Social and epidemiological features of cases with histologically confirmed diagnoses of endometrioma only, adenomyosis only, and deep infiltrating endometriosis were compared. Significant variables from univariate analysis were entered into 3 binary multivariate logistic regression models to obtain independent risk factors for: deep infiltrating endometriosis versus endometrioma only,

Results: A total of 258 patients were included with 59 ovarian endometrioma only, 47 adenomyosis only, and 152 deep infiltrating endometrioses. Compared to endometrioma only, deep infiltrating endometriosis was associated with higher rates of severe dysmenorrhoea (odds ratio [OR] 2.80, 95% confidence interval [CI] 1.02–7.70) and out-of-pocket private surgical care (OR 4.72, 95% CI 1.85–12.04). Compared to adenomyosis only, deep infiltrating endometriosis was associated with a higher fertility desire (OR 13.47, 95% CI 1.01–180.59) and a lower body mass index (OR 0.89, 95% CI 0.79–0.99). In contrast, heavy menstrual bleeding was the hallmark of adenomyosis, being less common in patients with endometriosis.

Conclusion: Deep infiltrating endometriosis is associated with severe dysmenorrhoea, pain related to urinary and gastrointestinal tracts, higher fertility desire and infertility rate. Patients with pain symptomatology and subfertility should be referred early to a tertiary centre with the capability to diagnose and manage deep infiltrating endometriosis.

Endometriosis is a chronic inflammatory gynaecologic disease marked by the presence of endometrial-like tissue outside the uterus.¹ Debilitating chronic pelvic pain, dysmenorrhoea, and subfertility in women of reproductive age are commonly associated with endometriosis. The disease is estimated to affect about 1 in every 10 women of reproductive age, and half of infertile women.^2-4 The condition imposes a substantial economic burden on society, and the annual healthcare costs for endometriosis in selected European countries is estimated to be €3,113 per affected woman, which is similar to the costs for other chronic conditions such as type 2 diabetes, Crohn’s disease and rheumatoid arthritis.⁵ The costs of care to manage symptoms, including chronic pelvic pain, dysmenorrhoea, deep dyspareunia, dysuria, dyschezia, tenesmus, fatigue, and infertility, are much greater. These symptoms affect physical, mental, sexual, and social well-being, resulting in the need for prolonged medical therapy, repeated surgical treatments, and the indirect costs associated with a reduced quality of life and work productivity.^4,6

Endometriosis is diagnosed conclusively through surgical visualisation and biopsy specimens indicating the presence of endometrium-like epithelium and/or stroma outside the endometrium and myometrium. Broadly, 2 major endometriotic phenotypes are encountered clinically, namely ovarian endometrioma and deep infiltrating endometriosis.^7,8 Endometriomas are ovarian cysts containing endometrium-like tissue and dark blood-stained fluid, the colour and consistency of which give rise to the name “chocolate cysts”. Deep infiltrating endometriosis where endometriotic deposits exist below the peritoneum has been increasingly recognised to be responsible for disabling pain, poor quality of life and sexual dysfunction in many women.^9,10 It is also considered to be the most aggressive form of endometriosis.^11,12 There is no robust evidence of whether ovarian endometriomas and deep infiltrating endometriosis share similar risk factors.⁴ Many studies consider endometriosis to be a single disease without differentiating between ovarian endometriomas and deep infiltrating endometriosis.¹³ Some studies indicate that these 2 phenotypes have similar risk factors,^14,15 while others suggest that deep infiltrating endometriosis should be considered a specific disease with mechanisms of disease progression distinct from endometriomas.^9,16 Despite huge advances in our understanding of endometriosis, knowledge of the epidemiology and symptomatology of endometrioma compared to deep infiltrating endometriosis is considered rudimentary, leading to controversy about the epidemiology and development of these phenotypes.⁹ Epidemiological studies underpinned by histopathologically verified cases would contribute to a better understanding of these 2 endometriotic phenotypes.

Another condition commonly associated with intense pelvic pain and subfertility is adenomyosis. It is diagnosed by the presence of endometrial glands and stroma within the myometrium. In severe adenomyosis, the pathological diagnosis is straightforward, with disease evident at both gross and microscopic examinations. However, the diagnosis may be difficult in those with more limited disease, leading to extreme variations in the prevalence of adenomyosis, which ranges from 10–88%.¹⁷ Although adenomyosis was previously considered a disease of older multiparous women, the advent of transvaginal ultrasound as another diagnostic tool for adenomyosis has added a layer of uncertainty to the epidemiology and symptomatology of the condition.^18,19 The heterogeneity of diagnostic criteria for endometriosis and adenomyosis has led to some confusion on the presenting symptomatology and epidemiology of endometriomas, deep infiltrating endometriosis and adenomyosis.²⁰ There is a need to clarify the epidemiology, symptomatology and risk profiles of ovarian endometrioma, adenomyosis and deep infiltrating endometriosis, using the gold standard histopathological diagnostic criteria.

The objective of our study is to further clarify the epidemiology of deep infiltrating endometriosis, compared to patients who have only ovarian endometrioma or only adenomyosis, using cases that were confirmed by histological examination. The surgical logs for a tertiary referral centre for deep infiltrating endometriosis were examined and consecutive cases with either deep infiltrating endometriosis, ovarian endometrioma only, or adenomyosis only were identified, and their presentations and epidemiological features compared.

METHOD

Patients

The case logs of patients undergoing the index surgery for endometriosis or adenomyosis from 1 January 2015 to 30 September 2021 in the Department of Obstetrics and Gynaecology, National University Hospital, Singapore were identified and examined (Fig. 1). The study was reviewed by the Domain Specific Review Board of the National Healthcare Group, Singapore (Reference number: 2021/00498), and exemption from individual consent was granted.

Index operations were searched, and consecutive cases identified using the inpatient Table of Surgical Procedures (TOSP) codes for endometriosis or adenomyosis surgery from the Ministry of Health, Singapore:²¹ SI702P, SI715U, SI726U, SI802O, SI803O, SI805O, SI806O and SI812U (online Supplementary Table S1). Electronic case records of cases identified by the TOSP search were examined and cases with confirmed histological diagnosis of  endometriosis or adenomyosis during the period of 2015–2021 were selected (Fig. 1). These patients were then classified into 3 groups based on diagnostic confirmation by histopathological examination: ovarian endometrioma only, adenomyosis only, and deep infiltrating endometriosis. Cases in which both endometrioma and adenomyosis were present were not included in this analysis.

Diagnosis of endometrioma, adenomyosis and deep infiltrating endometriosis

Adenomyosis was defined as the presence of endometrial glands and stroma in the myometrium of cases with myometrium specimens. Ovarian endometrioma was confirmed by histology. Deep infiltrating endometriosis was defined as endometriosis infiltrating the peritoneum by >5mm and confirmed by intraoperative histology, located at or involving one of the following sites: recto-vaginal septum and related subperitoneal spaces; retroperitoneal spaces in the pouch of Douglas; subperitoneal involvement of fibromuscular pelvic structures such as the uterosacral and utero-ovarian ligaments; urinary tract including ureters, bladder, urethra; or digestive tract, especially colorectal sites. The presence of endometriosis at other sites did not affect the definition of deep infiltrating endometriosis.

Data collection

Sociodemographic characteristics, reproductive status, menstrual patterns, pain symptomatology, previous medical and surgical treatments prior to the index surgery, and the class of ward were retrieved from the patients’ medical records and stored in a secured database on our hospital intranet. Reproductive data recorded included sexual activity, fertility desire, previous diagnosis of infertility, obstetric history and the serum level of anti-Müllerian hormone (AMH) prior to the index operation. Menstrual regularity was classified as frequent (≤23 days), regular (24–35 days), oligomenorrhoea (>35 days) or amenorrhoea (>1 year). Abnormal menstrual bleeding patterns such as heavy bleeding or intermenstrual bleeding were also recorded. Patterns of chronic pain recorded included dysmenorrhoea, dyspareunia, dyschezia, tenesmus, constipation or diarrhoea, dysuria, or urinary frequency.

Statistical analysis

Anonymised data were analysed with the SPSS Statistics software version 28.0 (IBM Corp, Armonk, US). Univariate analysis for continuous variables across the 3 groups (endometrioma only, adenomyosis only, and deep infiltrating endometriosis) were compared using a one-way analysis of variance and Pearson’s chi-square test for categorical variables. Significant variables from the univariate analysis were entered into 3 binary multivariate logistic regression models (deep infiltrating endometriosis versus endometrioma only, deep infiltrating endometriosis versus adenomyosis only, and adenomyosis only versus endometrioma only). The following were not entered into the regression models: pain score before the index operation due to collinearity with pain symptomatology; weight being collinear with body mass index (BMI); and duration between age at first endometriosis diagnosis and age at index operation. Odds ratios (OR) with its corresponding 95% confidential interval (CI) were presented. P<0.05 was considered statistically significant.

RESULTS

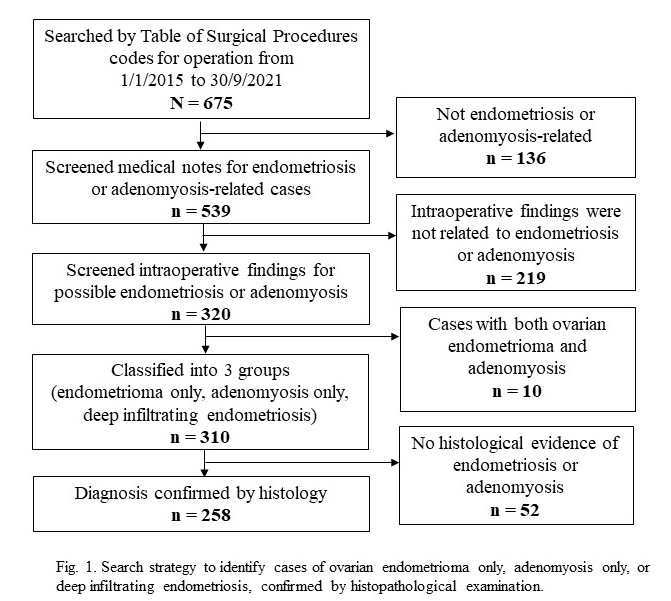

Initial screening using TOSP codes identified 675 index operations. Cases unrelated to endometriosis or adenomyosis, cases with both conditions, and those without histological confirmation were excluded. Only 258 index cases with histologically confirmed endometriosis or adenomyosis were used in the present analysis (Fig. 1). Table 1 shows their epidemiological features. About half were of Chinese ethnicity, a fifth were Malay and 10% were Indian. Almost 70% were married, 60% were nulliparous, 40% expressed a desire for children, and a quarter of all patients having been diagnosed with infertility. Some 40% reported heavy menstrual bleeding and severe dysmenorrhoea. Their mean age at the time of index operation was 38.1±8.2 years, the mean BMI was 24.4±5.3, and the mean duration between diagnosis of the condition and index surgery was 2.7±4.0 years.

Table 1. Characteristics of patients with endometrioma only, adenomyosis only, and deep infiltrating endometriosis

Unadjusted differences between endometrioma, adenomyosis and deep infiltrating endometriosis

Our analytical cohort consisted of ovarian endometrioma only (n=59), adenomyosis only (n=47), and deep infiltrating endometriosis (n=152) (Table 1). Subjects with deep infiltrating endometriosis were the youngest at the time of index operation (35.7±7.2 years), followed by endometrioma only (37.9±8.1 years) and adenomyosis only (45.9±6.7 years). Subjects with endometrioma only had the shortest duration between diagnosis and the index operation (1.6±2.8 years) whereas adenomyosis only had the longest (3.6±5.3 years). Consequently, cases with adenomyosis only were the oldest (42.6±9.7 years) at the time of first diagnosis. Cases with deep infiltrating endometriosis were most likely to be private patients compared to those with adenomyosis and endometrioma only (52.6% versus 44.7% vs 30.5%).

Cases with deep infiltrating endometriosis were most likely to be nulliparous (65.8% vs 29.8% vs 64.0%), expressed the highest desire for fertility (55.3% vs 4.3% vs 35.6%) and received a diagnosis of subfertility (32.2% vs 14.9% vs 18.6%) compared to cases of adenomyosis and endometrioma only.

Cases of adenomyosis were most likely to present with heavy menstrual bleeding compared to cases with endometrioma only and deep infiltrating endometriosis (78.7% vs 25.4% vs 37.5%).

Among patients reporting severe dysmenorrhoea, deep infiltrating endometriosis had the highest pain symptomatology with a 55.9% rate compared to 31.1% for adenomyosis and 20.3% for endometrioma only. Cases with deep infiltrating endometriosis also reported increased rates of dyspareunia, dyschezia and tenesmus of 17.8–24.3% compared to about 10% in patients with adenomyoma, and 5% in patients with endometrioma only. Preoperative pain scores were also highest at 5.3±4.2 compared to 3.2±4.4 and 2.8±3.8 for cases of adenomyosis and endometrioma only. Cases of deep infiltrating endometriosis were also most likely to have undergone previous surgery for endometriosis compared to adenomyosis and endometrioma only (27.0% vs 17.0% vs 11.9%).

The BMI of patients with deep infiltrating endometriosis was the lowest (23.2±4.5) and those with adenomyosis only was the highest (27.5±6.3). When comparing the 3 different groups based on diagnosis, no statistically significant differences were observed in ethnicity, marital status, sexual activity status, history of ectopic pregnancy, menstrual regularity, constipation, urinary symptoms and preoperative AMH levels.

Adjusted risk factors for deep infiltrating endometriosis

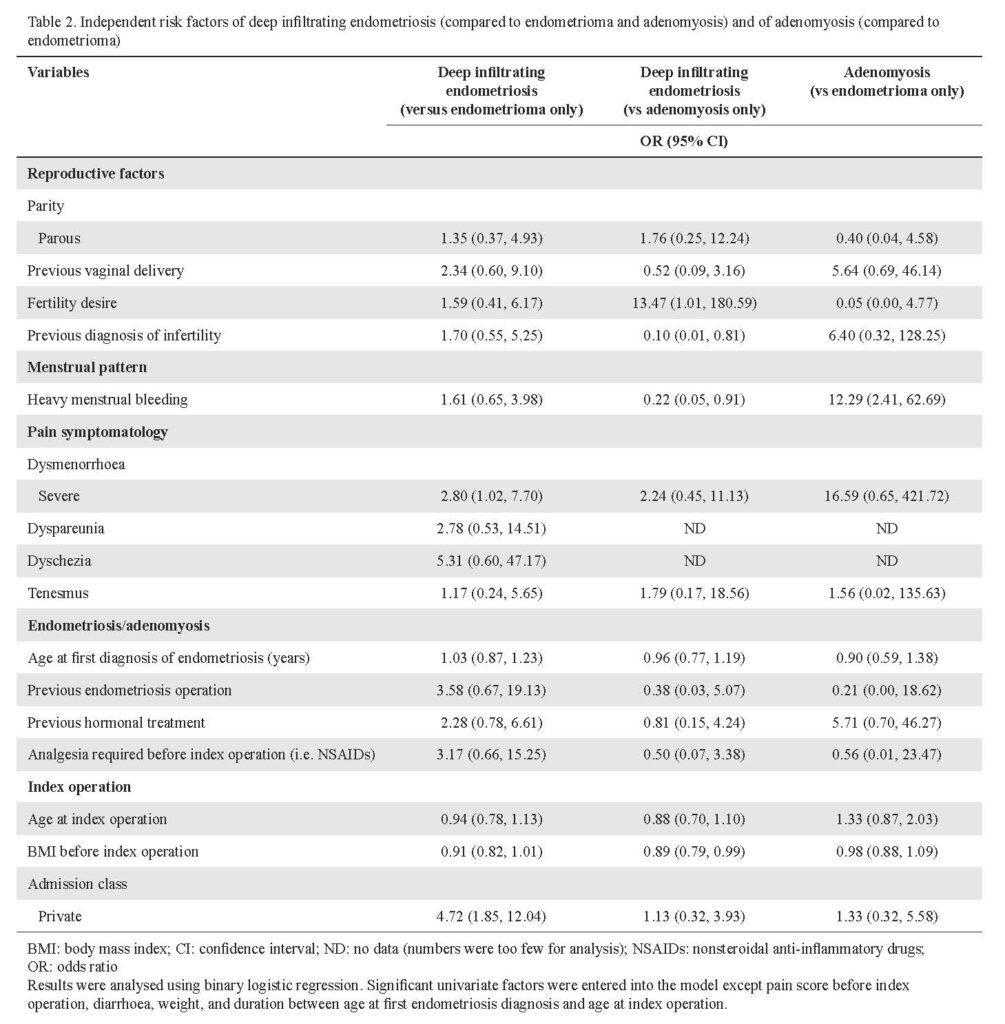

Significant univariate factors from Table 1 were entered into 3 binary multivariate logistic regression models that compared deep infiltrating endometriosis versus endometrioma only, deep infiltrating endometriosis versus adenomyosis only, and adenomyosis only versus endometrioma only (Table 2). Compared to ovarian endometrioma only, patients with deep infiltrating endometriosis suffered significantly more severe dysmenorrhoea (OR 2.80, 95% CI 1.02–7.70) and also opted for private surgical care (OR 4.72, 95% CI 1.85–12.04). Compared to adenomyosis only, patients with deep infiltrating endometriosis had 13.47 times (95% CI 1.01–180.59) higher fertility desire, a lower BMI (OR 0.89, 95% CI 0.79–0.99), and reported fewer complaints of heavy menstrual bleeding (OR 0.22, 95% CI 0.05–0.91). Overall, patients with adenomyosis had a higher risk of heavy menstrual bleeding compared to endometriosis, whether endometrioma only or deep infiltrating endometriosis.

DISCUSSION

Our study, based on histologically confirmed cases, indicates significant differences in the epidemiology and clinical presentations of deep infiltrating endometriosis, endometriomas and adenomyosis. Severe dysmenorrhoea was highest in patients with deep infiltrating endometriosis and was associated with higher rates of out-of-pocket private surgical care. Compared to adenomyosis only, deep infiltrating endometriosis was associated with a higher fertility desire and a lower BMI. In contrast, heavy menstrual bleeding was the hallmark of adenomyosis, being less common in patients with endometriosis.

The most prominent hallmark of deep infiltrating endometriosis was pain. Compared to endometrioma only or adenomyosis only, cases of deep infiltrating endometriosis suffered more severe dysmenorrhoea, dyspareunia, dyschezia, tenesmus and diarrhoea. Their mean pain score before the index operation was also the highest. Our findings differ from a study in a Chinese population where multivariate logistic regression analysis indicated that gastrointestinal symptoms during menstruation, rather than dysmenorrhoea, were more likely to be present in deep infiltrating endometriosis compared to ovarian endometriomas,²² This was possibly due to a comparatively larger number of deep infiltrating endometriosis subjects in our study. However, our results were consistent with previous studies,^10,3 which indicated that in addition to gastrointestinal symptoms, complaints of severe dysmenorrhoea, dyspareunia and lower urinary tract symptoms were also significantly associated with deep infiltrating endometriosis.

Compared to endometrioma only, cases of deep infiltrating endometriosis had almost double the duration between diagnosis and surgery. They were also more likely to opt for the private class of surgery despite this method being more expensive in Singapore, with an out-of-pocket funded healthcare system. The diagnostic delay in endometriosis is not new. The awareness of long delays in the diagnosis of endometriosis and unsatisfactory treatments were first raised in the 1980s by researchers in the US, and subsequent studies on more than 7,000 endometriosis patients showed the average time to diagnosis was 9 years.²⁴ European researchers showed similar data with an average delay of 6.7 to 11.7 years from the onset of symptoms to diagnosis of endometriosis.^25,26 Efforts to help patients identify their symptoms and seek medical attention earlier have been made in public education and primary care consultation.^27-30 The longer duration between the diagnosis of deep infiltrating endometriosis and the index operation in our study further demonstrated the delay in receiving treatments and indicated the underlying challenges in providing care for this most debilitating form of endometriosis. Patients with severe pain symptomatology should be referred to a tertiary centre with the ability to diagnose and manage deep infiltrating endometriosis as this may frequently require complicated excisions of endometriotic deposits affecting the urinary or gastrointestinal tracts.

Unlike the consensus of pain being the main symptom among patients with deep infiltrating endometriosis, their fertility desires are controversial. Previous studies reported lower fertility desire in deep infiltrating endometriosis compared to those of patients with adenomyosis or superficial endometriosis, thought to be related to the presence of pelvic pain or dyspareunia, and subsequent reduction in sexual function.³¹ In our study, fertility desire was associated with deep infiltrating endometriosis and a quarter of our patients had a previous diagnosis of infertility. A recent study on deep infiltrating endometriosis demonstrated similar data with 64.1% patients with bowel endometriosis expressing the desire to conceive.³² However, it is challenging to determine the independent impact on infertility by deep infiltrating endometriosis as deep lesions are rarely isolated and other coexisting forms of endometriosis may be the causes for subfertility. Nevertheless, early treatment for deep infiltrating endometriosis is indicated so that these patients achieve their desired family size.

Our findings need to be interpreted with the following caveats. Our series represents the most severe cases that had undergone surgery. Milder forms of endometriosis or adenomyosis that do not require surgery would not be included in our analysis. Correct identification of all cases involving endometriosis and adenomyosis depends on the accurate entry of TOSP surgical codes. Being a retrospective study, most data fields have missing datapoints. Cases with both ovarian endometrioma and adenomyosis were excluded, which may skew the symptomatology and risk factors. We have opted to include only cases confirmed with histopathological examination, thereby excluding cases that may be diagnosed based on ultrasound and other imaging methods. However, histopathology is the most rigorous diagnostic modality, and we believe this adds to the reliability of the data. One key strength of the present analysis is the relatively large number of cases of histologically proven deep infiltrating endometriosis. We also compared deep infiltrating endometriosis with cases where only ovarian endometrioma or only adenomyosis were encountered, thereby allowing clear phenotypes to be evident. Finally, the potential generalisability of the findings to other population needs to be interpreted with caution as our data represent only a surgical case series from a single centre.

CONCLUSION

In summary, our study has identified severe dysmenorrhoea, and pain related to urinary and gastrointestinal tracts, to be associated with deep infiltrating endometriosis. The highest fertility desire and infertility rate were reported in patients with deep infiltrating endometriosis. Adenomyosis was associated with heavy menstrual bleeding. Cases with pain symptomatology and subfertility should be referred to a tertiary centre with the capability to diagnose and manage deep infiltrating endometriosis.

Funding

This study was partially funded by the Singapore National Medical Research Council Grant (Reference number: NMRC/CSA-SI/0010/2017) to EL Yong.

SUPPLEMENTARY MATERIALS

REFERENCES

1. Horne AW, Missmer SA. Pathophysiology, diagnosis, and management of endometriosis. BMJ 2022;4;379:e070750.
2. Fuldeore MJ, Soliman AM. Prevalence and Symptomatic Burden of Diagnosed Endometriosis in the United States: National Estimates from a Cross-Sectional Survey of 59,411 Women. Gynecol Obstet Invest 2017;82:453-61.
3. Marki G, Bokor A, Rigo J, et al. Physical pain and emotion regulation as the main predictive factors of health-related quality of life in women living with endometriosis. Hum Reprod 2017;32:1432-8.
4. Zondervan KT, Becker CM, Missmer SA. Endometriosis. N Engl J Med 2020;382:1244-56.
5. Simoens S, Dunselman G, Dirksen C, et al. The burden of endometriosis: costs and quality of life of women with endometriosis and treated in referral centres. Hum Reprod 2012;27:1292-9.
6. Della Corte L, Di Filippo C, Gabrielli O, et al. The Burden of Endometriosis on Women’s Lifespan: A Narrative Overview on Quality of Life and Psychosocial Wellbeing. Int J Environ Res Public Health 2020;17:4683.
7. Revised American Society for Reproductive Medicine classification of endometriosis: 1996. Fertil Steril 1997;67:817-21.
8. Johnson NP, Hummelshoj L, Adamson GD, et al. World Endometriosis Society consensus on the classification of endometriosis. Hum Reprod 2017;32:315-24.
9. Gordts S, Koninckx P, Brosens I. Pathogenesis of deep endometriosis. Fertil Steril 2017;108:872-85.e1.
10. Montanari G, Di Donato N, Benfenati A, et al. Women with deep infiltrating endometriosis: sexual satisfaction, desire, orgasm, and pelvic problem interference with sex. J Sex Med 2013;10:1559-66.
11. Montanari E, Dauser B, Keckstein J, et al. Association between disease extent and pain symptoms in patients with deep infiltrating endometriosis. Reprod Biomed Online 2019;39:845-51.
12. Tosti C, Pinzauti S, Santulli P, et al. Pathogenetic mechanisms of deep infiltrating endometriosis. Reprod Sci 2015;22:1053-9.
13. Koninckx PR, Ussia A, Adamyan L, et al. The epidemiology of endometriosis is poorly known as the pathophysiology and diagnosis are unclear. Best Pract Res Clin Obstet Gynaecol 2021;71:14-26.
14. Chapron C, Santulli P, de Ziegler D, et al. Ovarian endometrioma: severe pelvic pain is associated with deeply infiltrating endometriosis. Hum Reprod 2012;27:702-11.
15. Parazzini F, Cipriani S, Bianchi S, et al. Risk factors for deep endometriosis: a comparison with pelvic and ovarian endometriosis. Fertil Steril 2008;90:174-9.
16. Nisolle M, Donnez J. Peritoneal endometriosis, ovarian endometriosis, and adenomyotic nodules of the rectovaginal septum are three different entities. Fertil Steril 1997;68:585-96.
17. Chapron C, Marcellin L, Borghese B, et al. Rethinking mechanisms, diagnosis and management of endometriosis. Nat Rev Endocrinol 2019;15:666-82.
18. Cunningham RK, Horrow MM, Smith RJ, et al. Adenomyosis: A Sonographic Diagnosis. Radiographics 2018;38:1576-89.
19. Stratopoulou CA, Donnez J, Dolmans MM. Conservative Management of Uterine Adenomyosis: Medical vs. Surgical Approach. J Clin Med 2021;10:4878.
20. International Working Group of AAGL ESGE, ESHRE, WES, Tomassetti C, Johnson NP, et al. An international terminology for endometriosis, 2021. Fact Views Vis Obgyn 2021;13:295-304.
21. Ministry of Health, Singapore. Table of Surgical Procedures, updated 1 February 2021. https://www.moh.gov.sg/docs/librariesprovider5/medisave/table-of-surgical-procedures-(1-feb-2021).pdf. Accessed 1 October 2021.
22. Dai Y, Zhou Y, Zhang X, et al. Factors associated with deep infiltrating endometriosis versus ovarian endometrioma in China: a subgroup analysis from the FEELING study. BMC Womens Health 2018;18:205.
23. Chapron C, Tosti C, Marcellin L, et al. Relationship between the magnetic resonance imaging appearance of adenomyosis and endometriosis phenotypes. Hum Reprod 2017;32:1393-401.
24. Ballweg ML. Impact of endometriosis on women’s health: comparative historical data show that the earlier the onset, the more severe the disease. Best practice & research Clinical obstetrics & gynaecology 2004;18:201-18.
25. Chapron C, Lafay-Pillet MC, Santulli P, et al. A new validated screening method for endometriosis diagnosis based on patient questionnaires. EClinicalMedicine 2022;44:101263.
26. Nnoaham KE, Hummelshoj L, Webster P, et al. Impact of endometriosis on quality of life and work productivity: a multicenter study across ten countries. Fertil Steril 2011;96:366-73.e8.
27. Agarwal SK, Chapron C, Giudice LC, et al. Clinical diagnosis of endometriosis: a call to action. Am J Obstet Gynecol 2019;220:354.e1-e12.
28. Denny E, Mann CH. Endometriosis and the primary care consultation. Eur J Obstet Gynecol Reprod Biol 2008;139:111-5.
29. Manderson L, Warren N, Markovic M. Circuit breaking: pathways of treatment seeking for women with endometriosis in Australia. Qual Health Res 2008;18:522-34.
30. Rowe HJ, Hammarberg K, Dwyer S, et al. Improving clinical care for women with endometriosis: qualitative analysis of women’s and health professionals’ views. J Psychosom Obstet Gynaecol 2021;42:174-80.
31. Somigliana E, Garcia-Velasco JA. Treatment of infertility associated with deep endometriosis: definition of therapeutic balances. Fertil Steril 2015;104:764-70.
32. Ceccaroni M, Ceccarello M, Clarizia R, et al. Nerve-sparing laparoscopic disc excision of deep endometriosis involving the bowel: a single-center experience on 371 consecutives cases. Surg Endosc 2021;35:5991-6000.
